LP50

Advanced research inkjet printer

PiXDRO LP50 is designed for research and development of inkjet processes and applications.

The PiXDRO LP50 is a desktop R&D inkjet printer for functional printing applications. It is designed for research and development of inkjet processes and applications, as well as evaluation and development of inkjet materials.

The PiXDRO LP50 platform is an open, accurate, flexible and easy-to-use system that will allow you to work at the cutting edge of inkjet printing technology. It is designed for a wide range of applications such as semiconductor packaging, PCBs, printed electronics, photovoltaics, displays and biomedical.

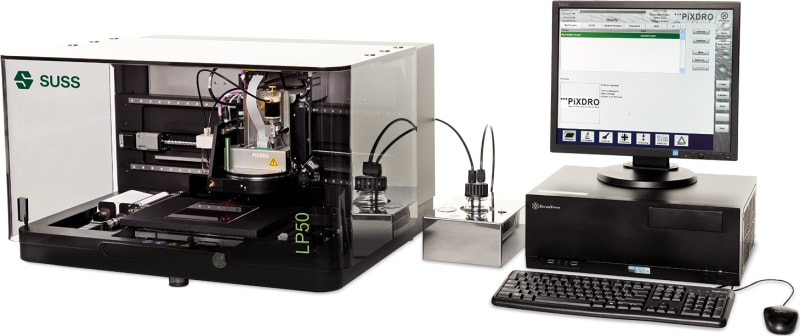

SUSS MicroTec PiXDRO LP50

Highlights

High accuracy motion systems

Fast and accurate exchange of printheads and inks

Open architecture enables user-defined and application-specific functionalities

Automated printhead maintenance (capping, purging, spitting, wiping)

Easy transfer of process recipes to PiXDRO production printers

Main features and options

  • Advanced Drop Analysis (ADA) for best ink jetting performance
  • Automatic Print Optimization (APO) for best application results
  • Substrate chuck cooling
  • Dual printhead configuration
  • Ink tank heating
  • UV LED pinning and curing
  • Laser source module
  • Customized substrate holders
  • Glovebox integration for inert environment
  • JS20 printhead storage station
  • Printer table with storage cabinet and monitor/keyboard swing arm
  • Recirculating ink supply for nanoparticle inks
  • Advanced Gerber File Rasterizer

Software

Automated drop formation research and quality monitoring

Advanced Drop Analysis (ADA) is an optional software utility for the LP50 inkjet printer that enables fully automated multi-dimensional research of ink drop formation.

This feature allows fast and efficient optimization of jetting performance for specific inks and printheads in order to achieve best printing results on the substrate given. Once an optimal waveform is created, Advanced Drop Analysis also enables that waveform to be validated for different nozzles, printheads and batches of ink, to provide process tracking over time.

ADA makes use of the integrated high-speed dropview camera to analyze drop formation, while varying the jetting settings. The effect of each setting is then visually presented, and the results can be exported to specific printing recipes.

Your benefits:

  • Automatic and advanced experiment sequencing
  • Varying waveform, ink pressure and temperature for optimized drop formation and print results
  • Control of long-term stability and nozzle-to-nozzle variation
  • Visual and quantitative analysis of drop formation, angle, speed and size

 Main features and options

  • Supports FujiFilm Dimatix, Konica Minolta, OCE and Xaar printheads
  • Integrated as a dedicated recipe in the PiXDRO user interface
  • Includes results viewer, status check and export tool

Optional Software Module

Software package to quickly define the optimal print settings

Automated Print Optimization (APO) is an optional software module for the PiXDRO LP50 inkjet printer that enables quick and effective definition of the optimal print settings.

APO software is designed for process developers who want to investigate various ink materials and substrates, and who need to define the best print settings to achieve their goals. APO unlocks the full potential of the printer by providing quick access to the various advanced print strategies.

The automated print routine generates a matrix of patterns on a substrate based on the variation of pre-selected input parameters, enabling operators to rapidly find the optimal settings for their application.

Benefits of Automated Print Optimization

  • Enables the highest possible print quality
  • Allows fast and effective print quality analysis
  • Runs independently, allowing more analysis time
  • Automatic variations of all available parameters
  • Results are directly visible for inspection

Main features

  • Supports all printheads and parameters
  • Matches print and waveform settings with required layer properties
  • Optimizes drop flow behavior
  • Simulates nozzle failures in different masking strategies
  • Monitors process stability over time
  • User-friendly reporting format

Software package

For conversion to inkjet printable format

The Advanced Gerber File Rasterizer for PiXDRO inkjet printers enables conversion of Gerber files to an inkjet bitmap format. The software package supports the printing of masking layers, interconnection circuits, encapsulation coatings and many other applications.

Typically, the conversion of a vector (Gerber) file to a bitmap print file can cause rounding and pixelization errors. The Advanced Gerber File Rasterizer minimizes these errors, and can conserve the minimum feature sizes of the original design. The software package is specifically designed for LP50, IP410 and JETx inkjet printers.

Example of an vector to bitmap error

Your benefits:

  • Specifically designed for PiXDRO inkjet printers, based on extensive functional inkjet experience
  • State-of-the-art Gerber RIP
  • Extremely fast and robust, enabling on-the-fly file conversion
  • Precise, high resolution conversion
  • User-friendly interface

Main features and options

  • Droplet Size Compensation: prevents lines from becoming too wide, and gaps from becoming too small
  • Ink Coverage Control: controls the ink density along the print periphery and within the interior
  • Narrow Line Recovery: narrow lines with dimensions close to the dropsize could disappear during Gerber file conversion, but will be recovered by this function
  • Expert Mode: all commands and options are accessible in the print recipe
  • Independent X-Y DPI: can apply different resolutions for the X and Y axes
Printheads & Cartridges

 Choice of industrial printheads

  • Fujifilm Dimatix S-class, SE3/SX3, Sapphire, Emerald, Samba G3L, DMC
  • Konica Minolta KM512, KM1024i
  • XAAR 1003er series
  • OCE CrystalPoint C29

Printhead with ink recirculation

For printing particle inks on PiXDRO inkjet printers

The LP50 represents a unique combination of technologies from SUSS MicroTec and Xaar. It provides an R&D inkjet printing platform that enables fluid developers and OEMs working in a variety of application areas to incorporate Xaar’s piezo inkjet technology. The LP50 is compatible with many Xaar printheads, electronics and ink delivery systems. Its precise fluid control – essential for functional printing – is due to highly accurate drop placement, consistent drop volume and high frequency jetting with variable drop size capability. Whether for validating fluids in labs or for boosting manufacturing capacity, the LP50 platform is a flexible, easy-to-use inkjet printing solution suitable for applications such as printed electronics, photovoltaics, OLEDs and biomedical. Transfer of settings to PiXDRO JETx production equipment ensures scalability.


Your benefits

  • Suitable for heavily filled nanoparticle inks that require recirculating ink supply
  • Completely integrated solution that can be controlled via printer’s user interface
  • Ink recirculation system designed for small ink volumes
  • Standalone recirculation system allows continuous ink flow, also when not printing
  • Accurate ink pressure control

Main features and options

  • Module contains a printhead assembly, drive electronics, user interface software and Xaar Midas recirculating ink supply system
  • Compatible with Xaar 1003 printhead (other printheads optionally on request)
  • Printhead heating with temperature control between 20 and 40°C
  • Compatible with LP50 and IP410 systems

Disposable cartridge for PiXDRO LP50 / PiXDRO IP410

Low-cost testing without compromise

The DMC module is upgradable on PiXDRO LP50 system with software version 4.3.1 and higher.

The optional PiXDRO DMC module is completely integrated and can be controlled via the printer’s user interface software just like other heads. It is compatible with all available disposable cartridges for 1 and 10 pL drop sizes.

Main DMC cartridge specifications:

  • 16 nozzles, 254 μm nozzle pitch, single row, 1.5 ml ink capacity
  • Compatible with all available DMC cartridges (DMC-11601, DMC-11610, DMCLCP-11601, DMCLCP-11610)

Your benefits:

  • Versatile waveform control for multi-pulse waveforms
  • Direct access to jetting parameters
  • Individual nozzle enable/disable
  • Ink tank lighting for easy readout of ink level
  • Heated printhead with temperature control up to 60°C
  • Accurate printhead rotation
  • Easy, fast and accurate changeover between printheads and inks
  • Compatible with Advanced Drop Analysis (ADA)

UV LED module

Precise printing and curing in one process step

The KM1024i printhead with Phoseon UV LED curing module is an optional feature for the LP50 and IP410 inkjet printers. The UV LED module is integrated in the printhead assembly, mounted next to the printhead, enabling precise printing and curing in one movement. It gives users high flexibility and control in tuning their processes. The KM1024i printhead family provides reliable high frequency, high resolution printing in a compact design. Every printhead has 1024 nozzles with tunable drop sizes, nominal at 6, 14 or 32 pL. The Phoseon Fireline FL200 light sources are water-cooled UV LED modules, delivering superior UV curing performance and stability, with a choice of wavelengths at 365, 385, 395 or 405 nm.

Your benefits

  • Printing and curing in one movement for high process control and accuracy
  • Excellent consistency regarding drop angle deviation, velocity and volume
  • Suitable for UV, water-based, solvent, ceramic or nano-particle inks
  • Choice of water-cooled Phoseon UV LED sources, with wavelengths at 365, 385, 395 or 405 nm
  • Adjustable UV power up to 20 W/cm2, controllable via the printer’s user interface

Main features and options

  • Print Head Assembly (PHA) interface for LP50 and IP410 inkjet printers, and for JS20 storage station
  • Supports all KM1024i printheads with configurable waveform
  • Available with built-in electrical ink heater
  • Curing dose calculation for UV intensity parameter
  • Integrated water chiller for UV LED cooling, or external water cooling supply
  • Anti-reflective features to eliminate UV reflection on printhead and other components
