MCS8 Manual Coating System

The Labcluster for Laboratories, Start-Ups, and Small Production

SUSS MicroTec’s Manual Coating System (MCS8) offers the latest generation of coating and aqueous developing techniques in a unique cluster configuration. It is designed and assembled to provide the greatest variety of functionalities on the smallest cleanroom footprint. Technologies which have proven themselves in SUSS MicroTec's high-volume production tools are thus accessible to laboratories, start-ups, and small-scale production through the MCS8.


  • Smallest cleanroom footprint
  • Wide range of options down to module level
  • Flexible configuration with over 500 possibilities
  • One supply and one waste management system
  • Proven technology in SUSS HVM tools

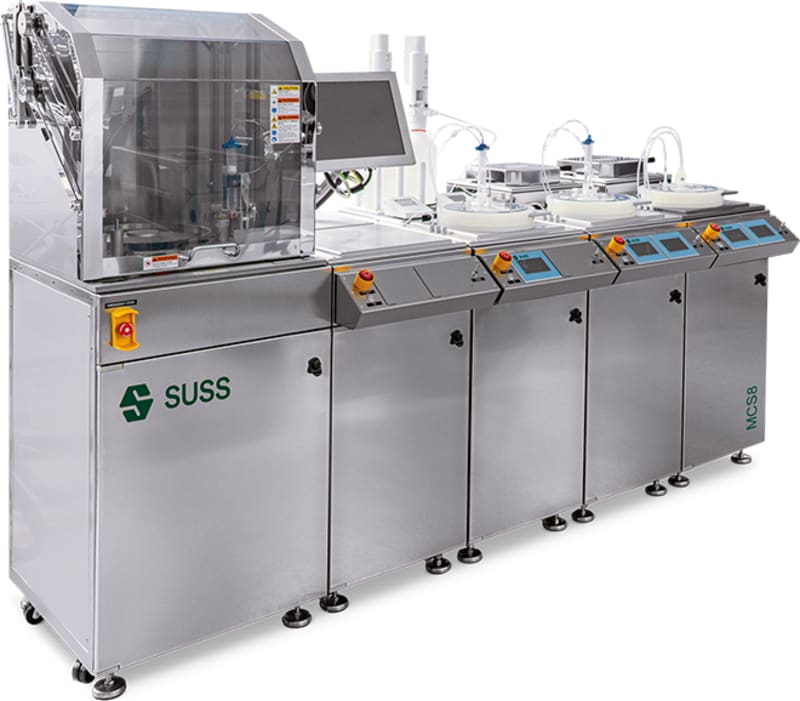

MCS8 Manual Coating System

The MCS8 consists of customizable frames for two individual modules. Customers select these two modules according to their individual requirements from the wide range of SUSS MicroTec’s manual and semi-automated coater and aqueous developer tools. These options include SUSS LabSpin8, SUSS Hot Plate, SUSS Vapor Primer, or the actively chilled SUSS Cool Plate. The two individual modules are placed one behind the other. This allows optimal use of cleanroom space. For best operator ergonomics, the rear module is raised in height.

All modules can be equipped with optional functions such as automatic dispensing systems for LabSpins or proximity pins for Hot Plates. The MCS8 LabCluster is available as an array of up to six of these customizable frames including two modules each. This enables the combination of up to twelve modules in total, thus offering a complete process solution. By adding advanced coating and developing technology to the cluster through up to two tools such as RCD8 or AS8, the MCS8 allows for a broad spectrum of applications for MEMS, III-V, electron beam lithography, temporary bonding, nanoimprinting, microfluidics, and micro-optics. Customers can equip the MCS8 platform in a wide range of configurations based on SUSS MicroTec’s experiences for maximum benefit.

Available options include:

  • Dispense systems for coaters
  • Proximity pins and purge options for hot plates
  • Temperature control for developers
  • Wide range of chucks
  • One singular waste management system

Tools & Options


The semi-automated coater and developer platform delivers top application quality with maximum reliability and repeat accuracy.
More information


The spray-coating tool for high topographies can be equipped with up to two separate spray dispense systems.
More information


Manual hot plate for homogeneous temperature distribution, as well as heating ramps with high repeating accuracy, ensure constant and stable process results.
More information


LabSpin systems allow for a wide range of applications while providing uniform, precise, and repeatable spin coating results.
More information


The vapor primer prepares the wafer surface to improve the surface condition for optimal resist adhesion.


The actively chilled, recipe-based cool plate offers a closed cooling chamber preventing contamination on the wafer.
