Wafer Bonder

SUSS MicroTec’s wafer bonding platforms combine more than sixty years of microstructuring experience with solid product quality and a broad range of productivity features. Partnering with research, academia and material suppliers we develop intelligent bond solutions which offer leading-edge technology for our customers. Our wafer bonding platforms cover many different applications in 2.5D and 3D integration, MEMS, LED and power devices as well as other area of research and development.



Automated Wafer Bonder

XBS200 Wafer Bonder

Automated Platform for Wafer Sizes up to 200 mm

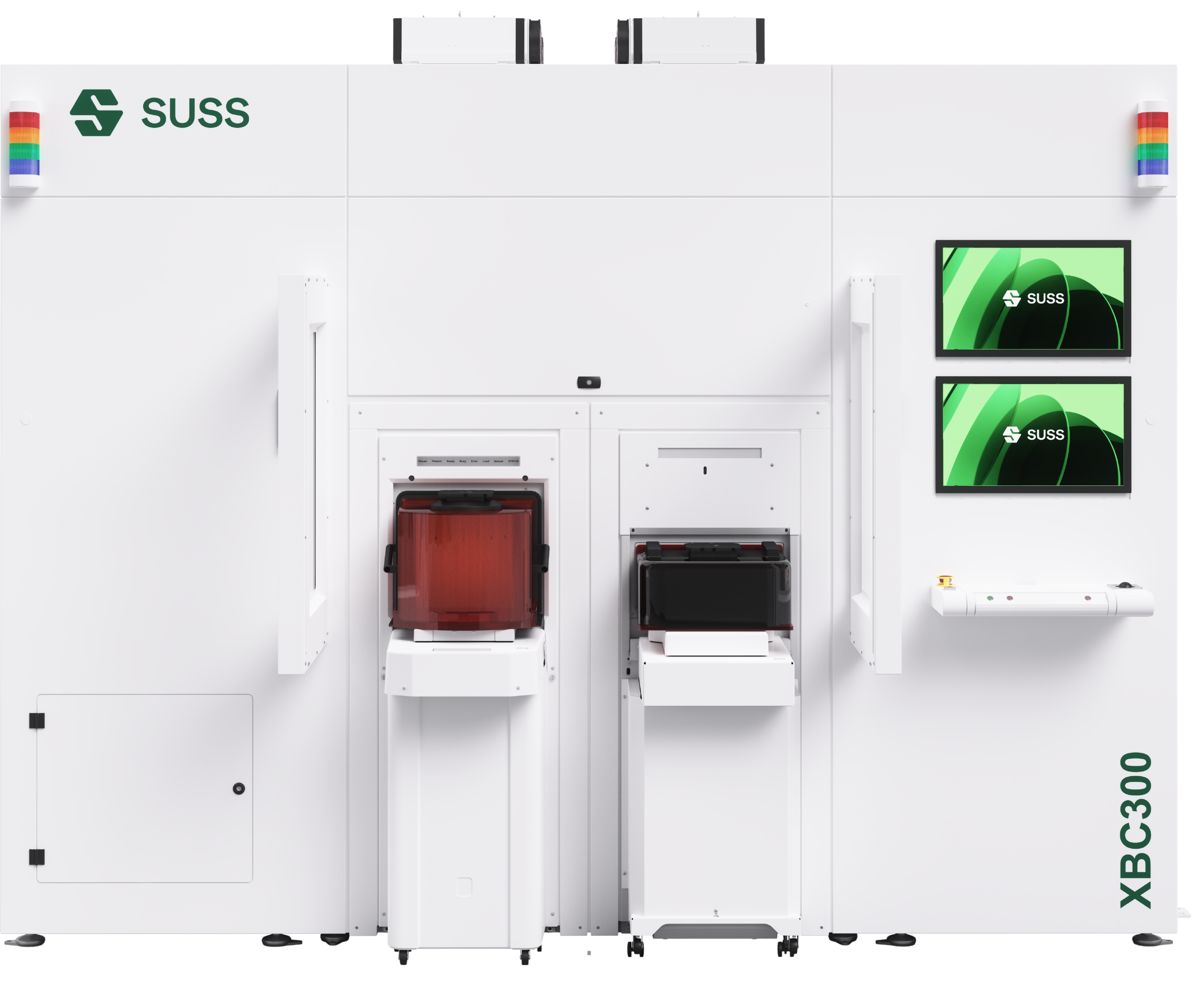

XBC300 Gen2 Debonder & Cleaner

Automated Platform for Wafer Sizes up to 300 mm

XBS300 Temporary Bonder

Universal Temporary Wafer Bonder for High Volume Manufacturing



Semi-Automated Wafer Bonder

BA Gen4 Series Bond Aligner

Manual Bond Aligner Wafer Sizes up to 8"/200 mm

BA8 Gen4 Pro Bond Aligner

High Precision Bond Aligner

ELD300 Debonder

Semi-Automated Excimer Laser Debonder

SB6/8 Gen2 Wafer Bonder

Semi-automated Tool for Permanent Wafer Bonding of Wafers up to 8"/200 mm

XB8 Wafer Bonder

Universal High-Force Wafer Bonder





Wafer bonding refers to attaching two or more substrates or wafers, of materials such as glass or silicon, to each other by means of various chemical and physical effects. Wafer bonding is mainly used in MEMS, where sensor components are encapsulated in the application. Other markets for this technology include advanced packaging, 3D integrationand CIS manufacturing. Temporary wafer bonding is a specialized technology within wafer bonding that is regarded as a key technology for 3D integration.

Adhesive Bonding

A variety of materials are available for adhesive wafer bonding techniques utilizing polymers and adhesives, including epoxies, dry films, BCB, polyimides, and UV curable compounds.

Available for:

Automated Bonder

Semi-Automated Bonder

Anodic Bonding

Anodic wafer bonding involves encapsulating components on the wafer by means of ionic glass. In triple-stack bonding, three layers (i.e. glass-silicon-glass) are simultaneously bonded, enhancing both functionality and yield.

Available for:

Automated Bonder

Semi-Automated Bonder

Eutectic Bonding

Eutectic wafer bonding takes advantage of the special properties of eutectic metals. Similar to soldering alloys, such metals melt already at low temperatures. This property allows planar surfaces to be achieved.

In order to control reflow of the eutectic material, eutectic bonding requires precise dosing of the bonding force and even temperature distribution.

Available for:

Automated Bonder

Semi-Automated Bonder

Fusion Bonding

Fusion bonding refers to spontaneous adhesion of two planar substrates. The process involves rinsing the polished discs and rendering them largely hydrophilic, then placing them in contact and tempering them at high temperatures. Plasma pretreatment allows the substrates to be bonded at room temperature.

Available for:

Automated Bonder

Semi-Automated Bonder

Semi-Automated Bond Aligner

Semi-Automated Mask and Bond Aligner



Glass Frit Bonding

A glass frit bonding process involves screen-printing glass frits onto the bonding surfaces. This results in structures that are subsequently heated and fused when the two substrate surfaces are placed in contact. On cooling, a mechanically stable bond results.

Available for:

Automated Bonder

Semi-Automated Bonder

Hybrid Bonding

Hybrid bonding is based on a thermocompression bond of two metallic layers with an integrated fusion bond. In this process, an electric (metal bond) compound and a mechanical (fusion bond) joint form at the same time.

Available for:

Automated Bonder

Semi-Automated Bonder

Various combinations of adhesive and release layers are available on the market that enable mechanical separation of the carrier wafer from the wafer before further processing. It is consequently essential to be able to vary parameters such as debonding speed and the debonding force applied in order to support the method applied in the particular case. The process needs to be controlled and monitored. During debonding, the thin wafer remains attached to dicing tape in order to facilitate further processing after being released from the carrier wafer.

The mechanical debonding processes supplied by SUSS MicroTec run at room temperature and are suitable for all common adhesives and techniques for temporary bonding. After debonding, the wafers require cleaning in order to remove any adhesive or release layer residues. Certain types of dicing tapes for mounting wafers have only limited resistance to cleaning media. Such tapes require protection during wafer cleaning.

Highlights

  • Open bonding platform supporting flexible configuration and all common adhesives and techniques
  • Controlled, monitored debonding process
  • Special protection during wafer cleaning allows unlimited choice of dicing tapes

Available for:

Automated Debonder

Metal Diffusion Bonding

Metal diffusion bonding is based on Cu-Cu, Al-Al, Au-Au and other metallic bonds. In addition, the use of metal diffusion allows two wafers to be bonded both mechanically and electrically in a single step. The technique is required for bonding in 3D applications such as 3D stacking.

Available for:

Automated Bonder

Semi-Automated Bonder

Slid Bonding

SLID bonding (solid-liquid inter-diffusion) is based on diffusion and the mixture of different metals. The melting temperature of the alloy after bonding is very much higher than the bonding temperature, which clearly widens the range of possible applications.

Available for:

Automated Bonder

Semi-Automated Bonder
